Creating a new Provisioning Plan
Oracle Fusion Applications Installation: Creating a new Provisioning Plan
Previous: Integrate Oracle Identity Manager (OIM) and Oracle Access Manager (OAM)
Important Note: This is OLD guide for old version 11.1.1.5. Please follow instructions at http://www.oratraining.com/blog/2012/12/oracle-fusion-applications-installation-step-by-step-guide-11-1-5/ for latest guide for current version i.e. 11.1.5
In order to create a new fusion applications provisioning plan we should launch the provisioning wizard again from <framework_location>/provisioning/bin
<framework_location> is same what we mentioned in previous post. i.e. /app/fusion
[oracle@fusion $ cd /app/fusion/provisioning/bin
[oracle@fusion bin]$ ./provisioningWizard.sh &

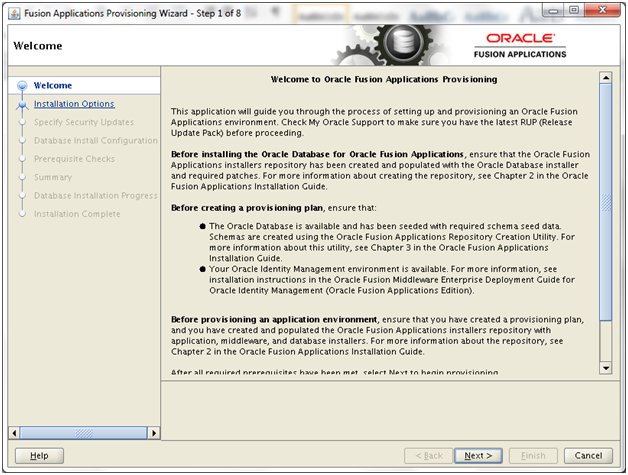

On Welcome screen, click Next

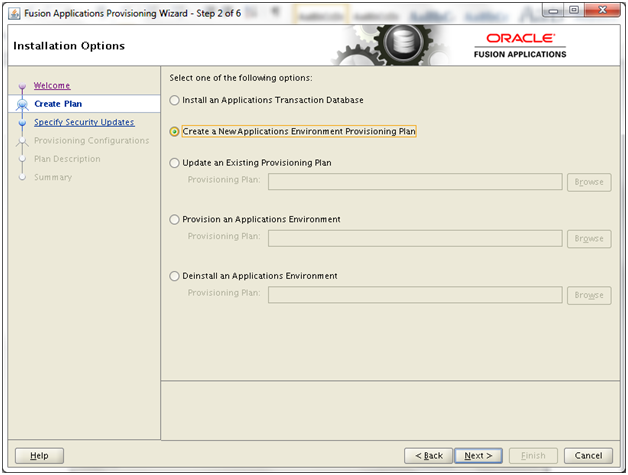

Select “Create a New Applications Environment Provisioning Plan” and click Next

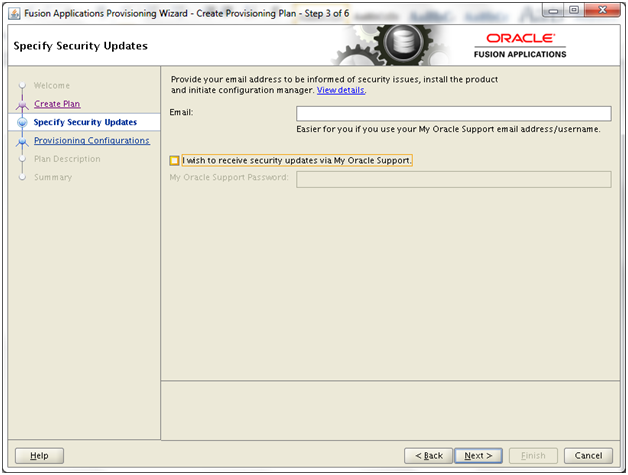

Deselect Security updates notification and click Next

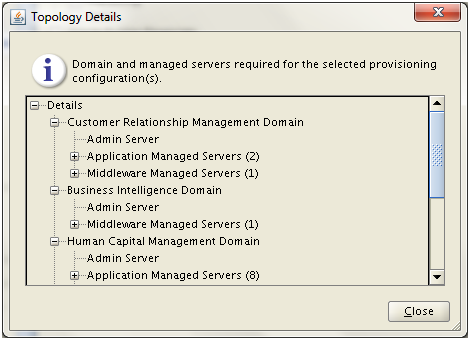

Please note that in Fusion Applications each Applications will include multiple Weblogic Managed Servers, admin servers etc and since our Virtual Machine is not having sufficient capacity to host all these applications, we selected “Oracle Human Capital Management”. You can select any product which you wish to configure first. Click Details to see the topology details for the selected module.
Click Close and then Next on configurations screen.

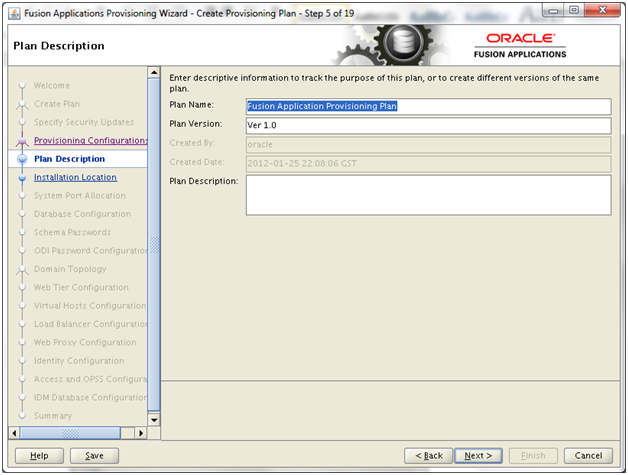

In this screen provide any name to this provisioning plan. Click Next
Since we entered “weblogic” as Node Manager login earlier, provide its password Oracle123
Installers Directory Location: The stage or repository location. In our case /mnt/fusion
Oracle Fusion Applications Home: Provide base location for the installation. /fusion (or whichever directory you choose)
Enter /fusion/instance for Application Configuration Directory.
As we have noted the location for Webgate Library earlier in Previous post, enter /app/fusion/oam_lib
We had created IDM Properties file /app/fusion/bea_default/Oracle_IAM/idmtools/bin/idmDomainConfig.param in previous post.
RDP Password: oracle123
Click Next
Since we already have services running on some of above ports (for example 7001 etc), change the base port to some other value for example 12000. The reason we chose 12000 is that as per Oracle release notes the above port ranges should not overlap with 11020. You can even manually skip that port. Change Node Manager port to 5557. Click Next

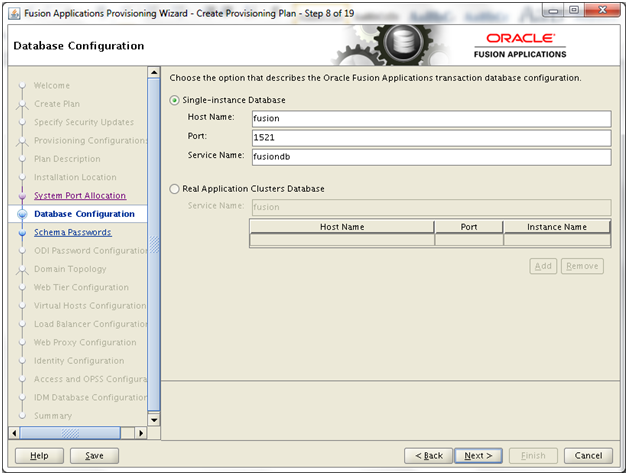

Enter database details in this screen. Click Next

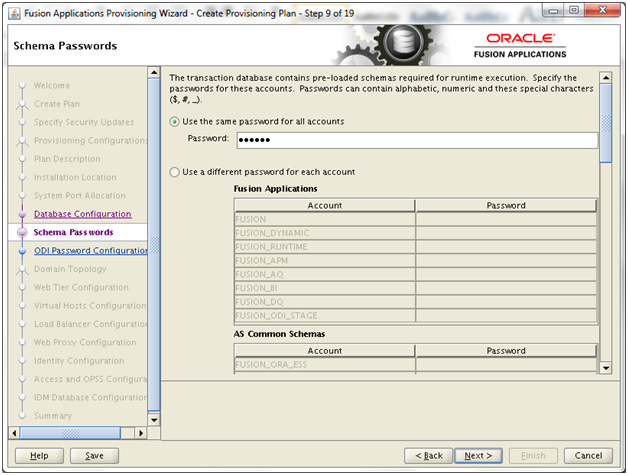

Enter same password. Lets’ keep Oracle123 again J

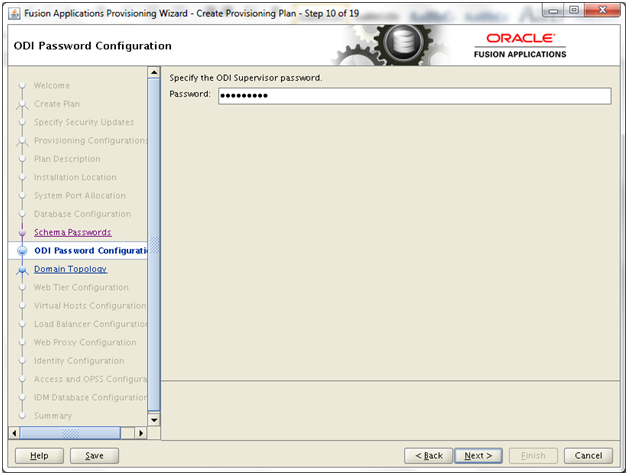

This will only accept earlier entered ODI Supervisor password. In our case, nothing to worry since we have all passwords as Oracle123
Password: Oracle123 (here it validates this password)

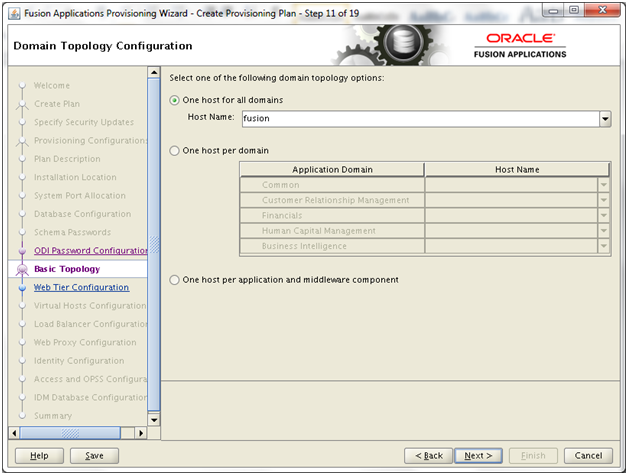

We are going to have single host for all domains. Enter our hostname “fusion” and click Next

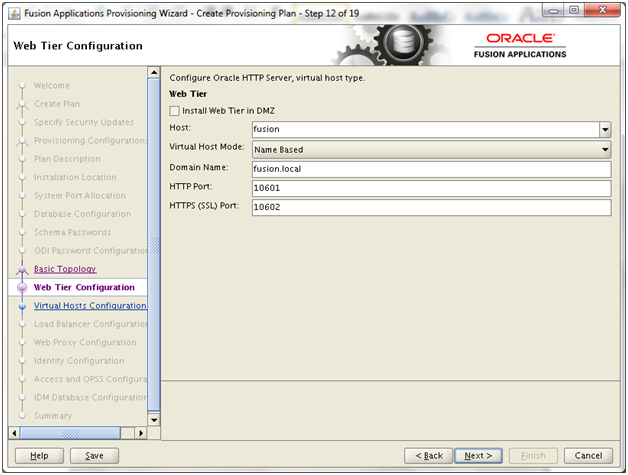

Deselect DMZ, enter host as fusion, domain as fusion.local. Click Next
Review above and change if desired. Click Next

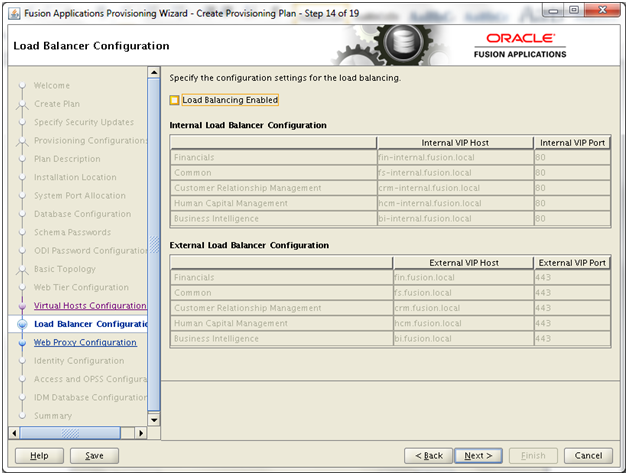

Since we are going to have the simplest installation, deselect Load Balancing. Click Next

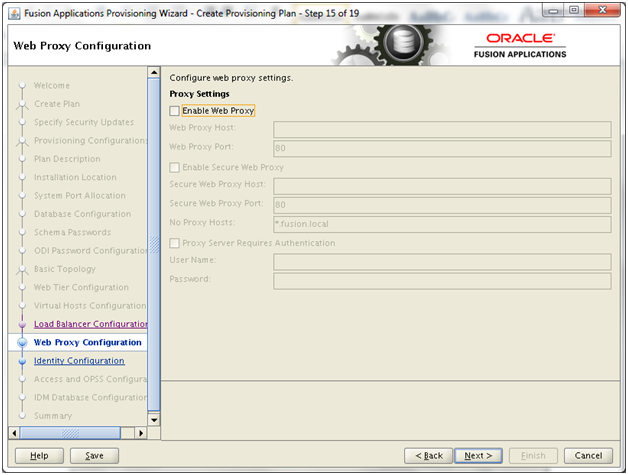

Deselect Proxy. Click Next
Entered following values only, remaining were populated from idmDomainConfig.param file
Super User Name: weblogic_fa
“Create Administrators Group”, “Create Monitors Group”, “Create Operators Group”: Checked
Entered Oracle123 in both password fields
“Identity Store Enabled SSL”, “OIM Endpoint Enabled SSL”: Unchecked
OIM Administrator User Name: We will use webglogic_idm username for provisioning. OIM Administrator login xelsysadm or oimadmin will not be used for provisioning.
OIM Administrator Password: Oracle123
OIM Managed Server port: 14000
OIM Endpoint Host: fusion (this is because we did not configure load balancing)
OIM Endpoint Port: 7777
IDM Keystore file: Create a dummy file anywhere on Linux and enter its path here.
[oracle@fusion]$ touch /app/fusion/provisioining/dummy
IDM KeyStore Password: Enter any value since this is not used for non SSL setup.
OAM Administrator User Name: oamadmin
OAM Administrator Password: Oracle123 (as defined earlier)
OAM AAA Server Host: fusion
OAM AAA Server Port: 5575 (Default and also defined earlier)
Access Server Identifier: wls_oam1
Secondary OAM: Unchecked
OAM Security Mode: Open
Webgate password: Oracle123 (as entered earlier in previous post)
OPSS Policy Store Password: Oracle123
OPSS Policy Store JPS Root Node: cn=FAPolicies (though you can choose any name but we will go with Oracle recommendation)
Create OPSS Policy Store JPS Root Node: Checked
OPSS Policy Store SSL Enabled: Unchecked
Remaining fields already poputed due to idmDomainConfig.param file. Click Next

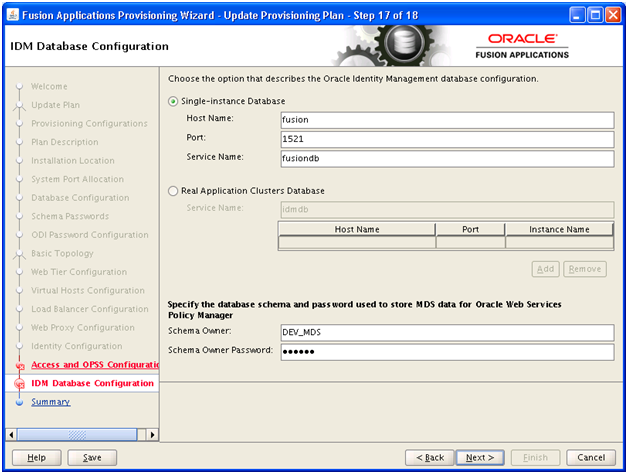

Enter Database Details. Also enter DEV_MDS and password Oracle123 (defined earlier during installation in previous post). Click Next
Click Finish to complete creating the plan.
