RCU for Oracle Identity Management components is only available for Linux and Windows platforms and the Fusion Application setup ships with Linux only RCU for Identity Management components.
So we will use Linux RCU only in this step.
Let’s create a directory to extract the RCU files.
[fusion@idmhost ~]$ mkdir /app/fusion/provisioning/fmw_rcu
[fusion@idmhost ~]$ cd /app/fusion/provisioning/fmw_rcu
Unzip the RCU which ships with the installation.
[fusion@idmhost fmw_rcu]$ unzip /stage/installers/fmw_rcu/linux/rcuHome.zip
Run the RCU now.
[fusion@idmhost ~]$ cd /app/fusion/provisioning/fmw_rcu/bin
[fusion@idmhost bin]$ ./rcu &

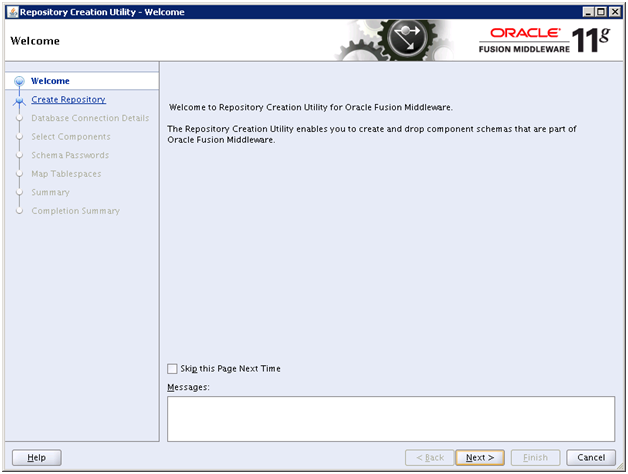

Click Next

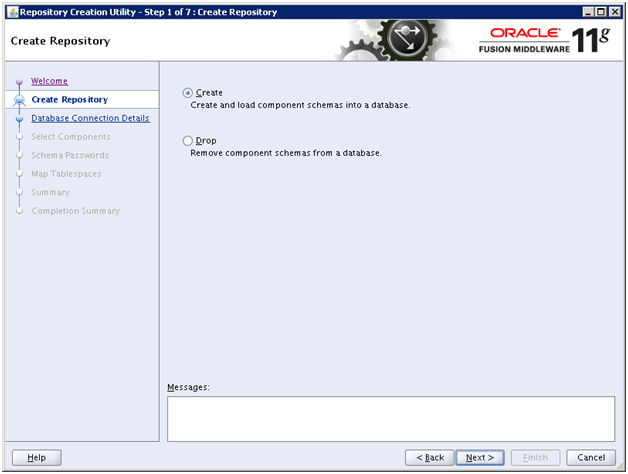

Select Create and click Next

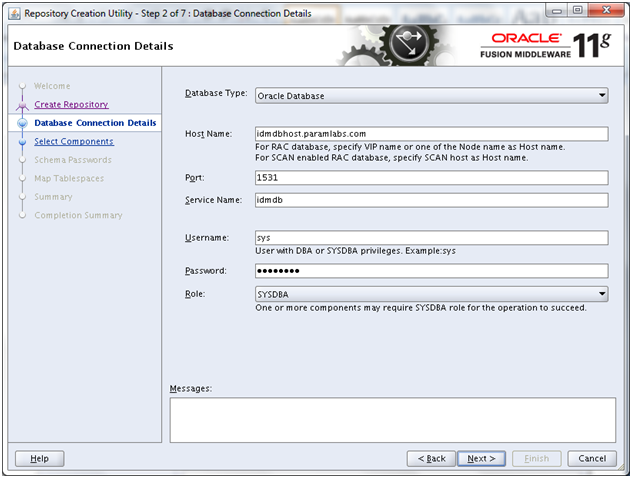

Enter details of our existing database and click Next

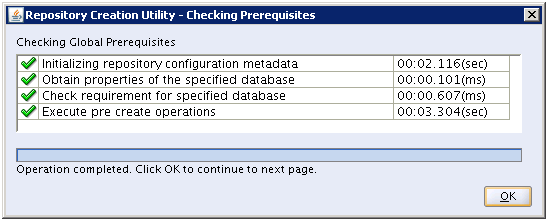

Once prerequisites check completes, click OK
Mention the prefix as “FA”. Till 11.1.6, Oracle was advising to use EDG or ISA prefix but we followed “FA” and 11.1.7 onwards they have made it mandatory to use “FA” only.

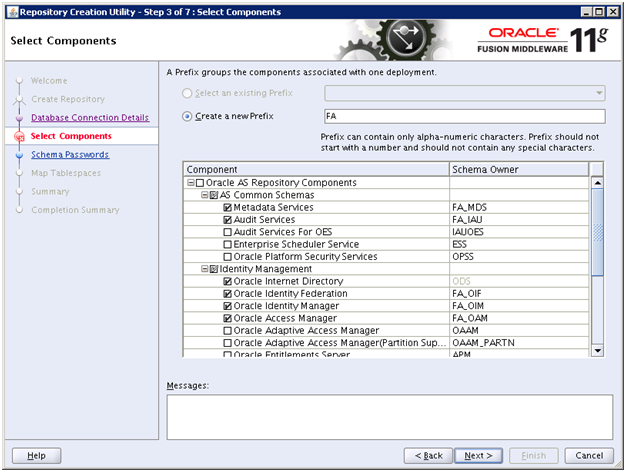

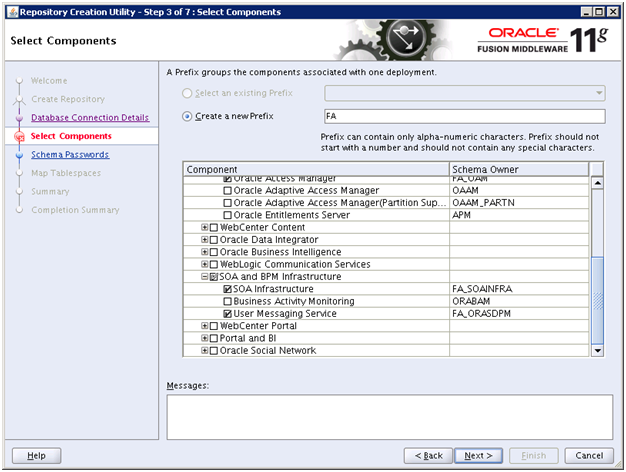

Select following components.
– Oracle Internet Directory
– Oracle Identity Federation
– Oracle Identity Manager
– Oracle Access Manager
Please note that following components will be automatically selected when you select above.
– Metadata Services
– Audit Services
– SOA Infrastructure
– User Messaging Service

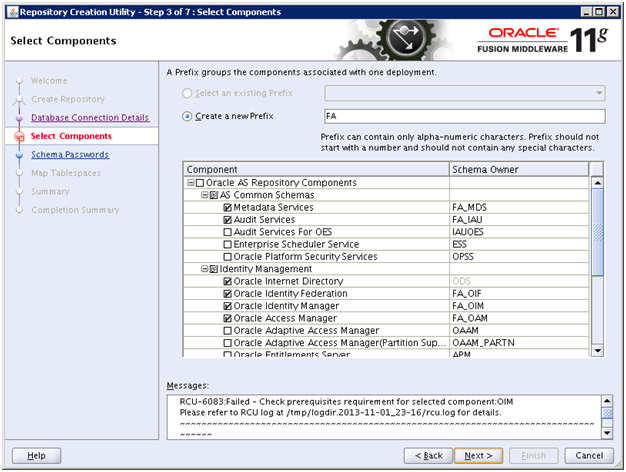

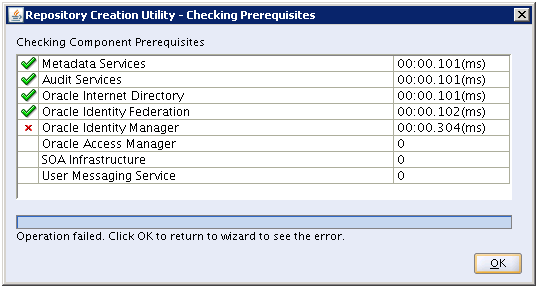

The prerequisite checks might fail. Click OK to see the error message.
The error message is following.
Error: XATRANS Views are not installed on this Database. This is required by the OIM Schema
Action: Install view XAVIEWS as SYS user on this Database.
Refer to the Oracle Database Release Documentation for installation details.
RCU-6092:Component Selection validation failed.
To fix this, please run the following SQL to create XA views.
[fusion@idmhost bin]$ cd /app/database/product/11.2.0/dbhome_1/rdbms/admin/
[fusion@idmhost admin]$ sqlplus / as sysdba
SQL> @xaview.sql
DROP VIEW v$xatrans$
*
ERROR at line 1:
ORA-00942: table or view does not exist
DROP VIEW v$pending_xatrans$
*
ERROR at line 1:
ORA-00942: table or view does not exist
View created.
View created.

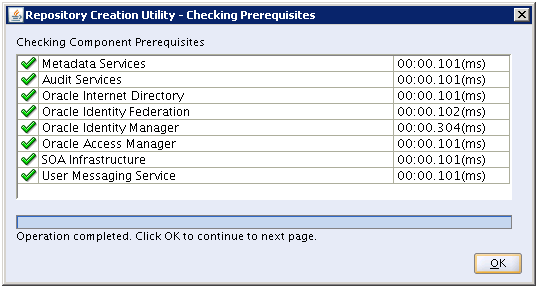

Now the prerequisites check should complete successfully.

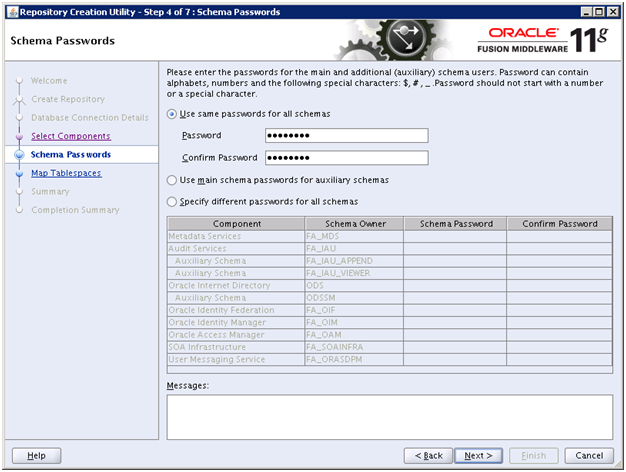

We have specified same password everywhere. Ie.e “Oracle123”. Click Next

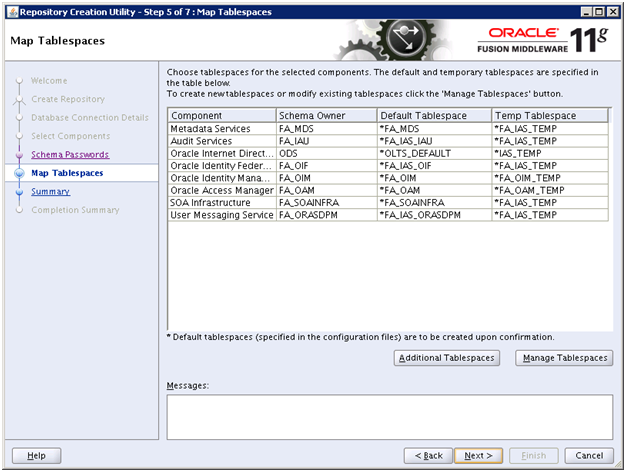

Click Next

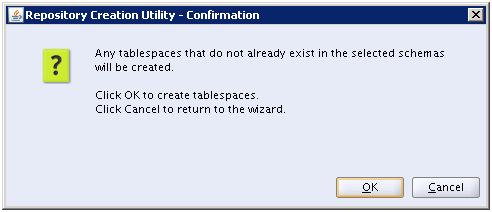

Click OK

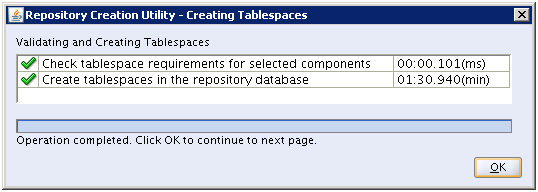

Once tablespaces are created, click OK

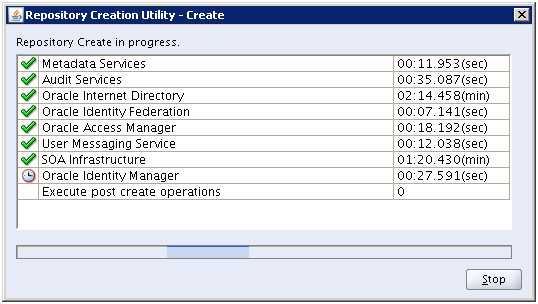

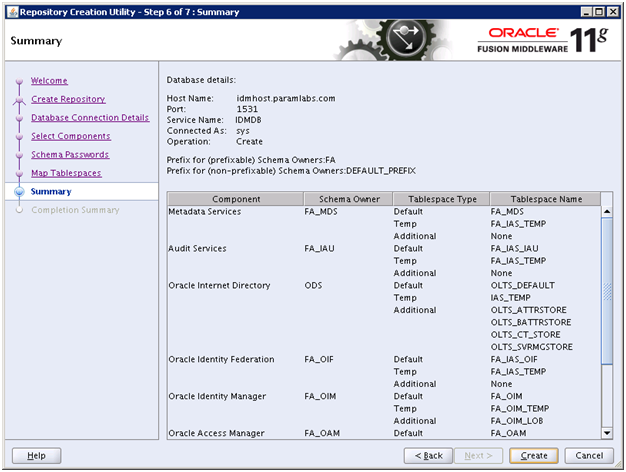

Review the summary and click “Create” to start creating the schemas.

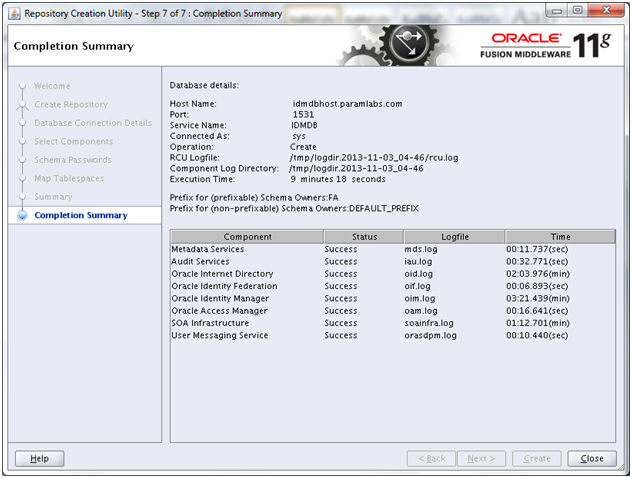

Once RCU finishes, review the summary and click Close
