Oracle Fusion Applications 11.1.8 installation – Step by step guide

Pro Oracle Fusion Applications – Installation and Administration

Now you can buy the first and only comprehensive book on Oracle Fusion Applications Installation and Administration which covers end to end information on introduction, planning, installation and troubleshooting guides for implementing Fusion Applications on premise. Buy it now from any of the following stores.

http://www.amazon.com/Pro-Oracle-Fusion-Applications-Administration/dp/1484209842

http://www.barnesandnoble.com/w/pro-oracle-fusion-applications-tushar-thakker/1121094340

http://www.apress.com/9781484209844

http://www.springer.com/us/book/9781484209844

Fusion Applications 11.1.8 installation is not straightforward unlike E-Business Suite 11i/R12 installation. So we need to divide the installation into a number of steps. Please note that 11.1.8 release provisioning is almost identical to 11.1.7 counterpart. At the same time the steps and a few components differ when compared to 11.1.6 and 11.1.5 . Here we have actually used the same 11.1.7 steps here for 11.1.8 guide and will mention wherever we see a difference compared to 11.1.7 steps.

Note: If you are looking for Fusion Applications 11.1.6 installation steps then you can refer to following link.

http://www.oratraining.com/blog/2013/03/oracle-fusion-applications-installation-step-by-step-guide-11-1-6/

If you are looking for Fusion Applications 11.1.5 installation steps then you can refer to following link.

http://www.oratraining.com/blog/2012/12/oracle-fusion-applications-installation-step-by-step-guide-11-1-5/

Following is our previous post which shows a few of the differences. More will be added soon.

http://www.oratraining.com/blog/2013/10/whats-new-in-fusion-applications-11-1-8-installationprovisioning/

In terms of architecture also there are a few changes which are already covered in the above link. Following is our previous post which shows different type of setups which we can choose for learning purpose.

http://www.oratraining.com/blog/2013/10/fusion-applications-architecture-for-2-or-3-nodes-setup-updated-for-11-1-8/

Here we will install Fusion Apps 11.1.8 in 2 nodes setup only for learning purpose but you can follow the same guide even for 3 nodes or 4 nodes setup since we have used hostname aliases for both database hosts including in the configuration so any point of time you can move databases across to separate node(s).

Following diagram shows the components in each host.

Node

Host name

Alias

Components

Node 1

idmhost

idmdbhost

1. Identity and Access Management components

(OID, OVD, OIF (optional), OAM, OIM, SOA)

2. Oracle Database for IDM

Node 2

fahost

fadbhost

1. Fusion Applications Domains

(Admin and Managed Servers for each product family)

2. Oracle Database for Fusion Apps

We are using following configuration for our installation.

Node 1
Hostname: idmhost
OS: Oracle Linux x86-64
Disk size: 300 GB
Memory: Minimum 8+ GB (Recommended 16+ GB)

Node 2
Hostname: fahost
OS: Oracle Linux x86-64
Disk size: 500 GB
Memory:

  • Option 1. For single product (except Financials, CRM or SCM) : Minimum 64+ GB (Recommended 96+ GB)
  • Option 2: For Financials or CRM or SCM: Minimum 88+ GB (Recommended 128 GB)
  • Option 3: For all products selected: Minimum 144+ GB

Fusion Application Installations can be largely divided into following steps.

Preparing for Oracle Fusion Applications installation

1. Downloading Oracle Fusion Applications media

2. Creating Oracle Fusion Applications provisioning repository / Staging directory

3. Installing OS (here Oracle Linux x86-64) on physical machine or Virtual machine (here Oracle VirtualBox VM)

Installing Oracle Fusion Applications – steps

A. Setting up Identity and Access Management Node

    1. Install Fusion Applications Provisioning Framework

    2. Install Oracle 11g Database (Identity management database)

    3. Run Repository Creation Utility (RCU) for Oracle Identity Management components

    4. Install Identity Management Provisioning Wizard

    5. Create IDM provisioning Response File

    6. Provision Identity Management

    7. Perform Post-Provisioning Configuration

B. Setting up Fusion Applications Node

    1. Install Fusion Applications Provisioning Framework

    2. Install Oracle 11g Database (Fusion Apps Database)

    3. Run Oracle Fusion Applications Repository Creation Utility (Applications RCU)

    4. Create new Applications Provisioning Response File

    5. Provision an Applications Environment

We are going to install Fusion Applications 11.1.8 for Oracle Linux x86-64 Operating system. So we will download the installation media for Oracle Fusion Applications 11.1.8 for Linux x86-64 from http://edelivery.oracle.com

Preparing for Oracle Fusion Applications installation

1. Downloading Oracle Fusion Applications media

Login to http://edelivery.oracle.com to access the following screen.

edelivery1118-1

Select “Oracle Fusion Applications” and required platform from the list. Click Go. Open the first pack.

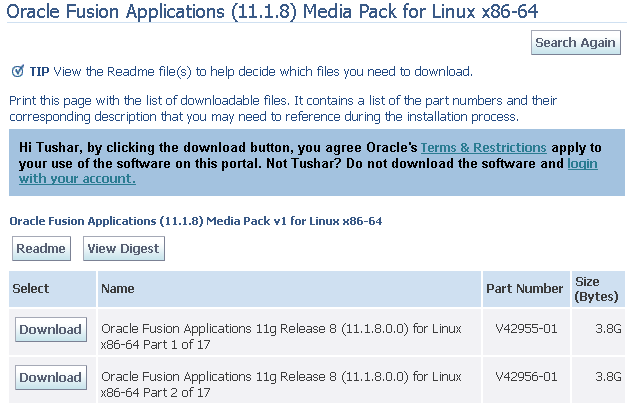

edelivery1118-2

Download the first 17 media files (excluding README and documentation library). We will not need rest of the media for this installation.

2. Creating Oracle Fusion Applications provisioning repository / Staging directory

Unzip all these files into one Stage directory on your host OS.

Important Note: Since some of the files have very long directory path (very close to 255 characters), please unzip these files into stage folder name to keep short name. At least 2 files have very long path so let us try to avoid this.

For example, if you are creating the stage directory on Windows then try to unzip into c:\stage or e:\stage etc

3. Install OS on physical machine or Virtual Machine

We have installed the OS on Oracle VirtualBox VM with Oracle Linux x86-64 OS as guest and Windows 2008 as host OS.

Next: Install Fusion Applications Provisioning Framework on IDM Host

Leave a comment | Trackback
Apr 15th, 2014 | Posted by Tushar Thakker | In Application server, Fusion Applications Provisioning, Fusion Middleware, Identity Management, Linux/Unix/Solaris, Oracle, Oracle Applications, Oracle DBA, Oracle Fusion Applications, Oracle Fusion Applications installation, Repository Creation Utilitiy
  1. elon frisk
    Reply | Quote
    Mar 26th, 2018 at 10:37 | #1

    I am studying oracle fusion from a long time but i am confused between oracle 3.0 and oracle 3.8

  2. Nagendra
    Reply | Quote
    Dec 12th, 2017 at 08:52 | #2

    Hi,

    I’ve a doubt.

    Can we install FA 11.1.8 everything in single node or is that mandatory to use 2 Nodes atleast ?

    Please help.

    Regards,
    Nagendra

  3. Kumar
    Reply | Quote
    Aug 7th, 2017 at 04:10 | #3

    Tushar,

    I have machines, 1 with 64 GB RAM (Server class -Xeon server), 2 with 32 GB RAM, 3 with 16 GB RAM, Please advice if I can install Fusion apps with this setup

    Regards

  4. Sridhar V
    Reply | Quote
    May 18th, 2017 at 04:46 | #4

    Hi Tushar

    I am Sridhar, 60 years old. I would like to master OBIEE. I have already installed java, oracle db 12c and now trying to install oracle fusion middleware.
    I have unzipped fusion file in my c:\Fusion. I have installed java files in
    c:\Program Files/Java/jdk1.8.0_121. Now from c:\fusion i gave command as
    c:\Program Files\Java\jdk1.8.0_121\bin\java.exe -jar fmw_12.2.1.2.0_infrastructure.jar
    Error: The system cannot find the path specified.
    What all I do. Could you please guide me.
    Warm Regards
    Sridhar

  5. Dipen
    Reply | Quote
    Sep 28th, 2016 at 14:58 | #5

    I have getting the below error while installing database
    “port provided for this listener is currently in use”

    I tried so many different ports, but for all of them it gives me the above error.

    I have tried all different options, but am not able to resolve the issue.

    Can someone please help me?

  6. sudha
    Reply | Quote
    May 31st, 2016 at 06:23 | #6

    Hi Tushar,

    What would be the minimum RAM required for the HCM installation??

  7. Bhavin Sheth
    Reply | Quote
    Apr 21st, 2016 at 09:12 | #7

    Hi,

    Can u please tell me which version of oracle linux is best for oracle fusion apps 11.1.8. I am trying to install it on oracle linux 6.7 but it gives me some hard limit soft limit error. Also, I want to know whether i should install oracle fusion apps 11.1.8 on base machine or VM?

  8. Sharon
    Reply | Quote
    Mar 30th, 2016 at 17:28 | #8

    Tushar

    I now have your book ,but can you recommend any Fusion training courses for installation & administration, thanks

    Regards
    Sharon

  9. Sharon
    Reply | Quote
    Mar 22nd, 2016 at 17:17 | #9

    Tushar

    I have seen many comments about having a vast amount of memory on the Fusion Applications node , however if i just want to install Fusion Applications ( just the financial modules) and look at it , ie no users do I still have to have 104gb of memory on the fusion node ?

    Regards
    Sharon

    • Tushar Thakker
      Reply | Quote
      Mar 22nd, 2016 at 19:21 | #10

      Dear Sharon,

      Yes it would still require at least 90 GB (FA) + 16 GB (IDM) in order to “Start up” Fusion Applications even if only Financials was provisioned. The reason being a large number of WebLogic Domains and managed servers being configured due to inter-dependencies and the number is easily in tunes of 50+ with each managed server requiring average 1.5 to 2 GB memory to “start up” only. I hope this clarifies.

      If you are planning to setup an on-premise installation of Fusion Apps then you would find my book “Pro Oracle Fusion Applications” useful especially the planning section which explains this in much more details.

      Thanks
      Tushar

      • Sharon
        Reply | Quote
        Mar 23rd, 2016 at 01:32 | #11

        Thanks Tushar, I will be getting your book ,it looks very useful.

        As regards cpu power on both nodes , what would you recommend.

        Thanks
        Regards
        Sharon

        • Tushar Thakker
          Reply | Quote
          Mar 23rd, 2016 at 05:23 | #12

          I would suggest getting a dual Xeon CPU server with 4 cores each. A single CPU with 8 cores also could work.

          Regards
          Tushar

          • Sharon
            Quote
            Mar 24th, 2016 at 19:04 | #13

            Thanks Tushar . I have just put in a request to get a second node with ample memory for the FA requirements , the other node with 32gb I can get pretty quickly. As soon as I have them both I will install 11.1.11 of the Fusion Apps. Is there much difference in the installation steps between 11.1.8 and 11.1.11.

            Also I have just purchased your book from Amazon “Pro Oracle Fusion Applications “, can’t wait to get it.

            Thanks
            Sharon

  10. Andy
    Reply | Quote
    Nov 27th, 2015 at 14:52 | #14

    Hi, can you provide the exact hardware specs that you used for the install e.g. for the HP ML350?

    Thanks.

  11. kaasi
    Reply | Quote
    Oct 23rd, 2015 at 07:30 | #15

    Hi Thushar,

    I am facing the below error.Could you please help me.

    2015-10-23 03:37:31.558 NOTIFICATION [logStatus] STATE=BUILD_ERROR!TIMESTAMP=2015-10-23 03:37:31 EDT!TARGET=private-run-dbms-installer!CATEGORY=BUILD_ERROR!DOMAIN=NONE!HOSTNAME=idmhost.sc.com!PRODUCTFAMILY=dbserver!PRODUCT=RDBMS_11gR2!TASK=oui10g!TASKID=dbserver.RDBMS_11gR2.BUILD_ERROR.private-run-dbms-installer.oui10g!MESSAGE=The OUI call failed. More information may be available in the logs within the partial install/configuration of this component, and also in the following oraInventory log location of this machine: /home/raju/oraInventory/logs/.!DETAIL=!BUILDFILE=/home/raju/app/provisioning/provisioning-build/dbserver-build.xml!LINENUMBER=820!

    2015-10-23 03:37:31.578 NOTIFICATION [logStatus] STATE=BUILD_ERROR!TIMESTAMP=2015-10-23 03:37:31 EDT!TARGET=private-run-dbms-installer!CATEGORY=BUILD_ERROR!DOMAIN=NONE!HOSTNAME=idmhost.sc.com!PRODUCTFAMILY=dbserver!PRODUCT=RDBMS_11gR2!TASK=oui10g!TASKID=dbserver.RDBMS_11gR2.BUILD_ERROR.private-run-dbms-installer.oui10g!MESSAGE=OUI10g installer failed: /home/raju/stage/installers/database/Disk1/runInstaller!DETAIL=OUI10g installer failed: /home/raju/stage/installers/database/Disk1/runInstaller!BUILDFILE=/home/raju/app/provisioning/provisioning-build/dbserver-build.xml!LINENUMBER=820!

    2015-10-23 03:37:31.668 TRACE
    BUILD FAILED
    /home/raju/app/provisioning/provisioning-build/dbserver-build.xml:104: The following error occurred while executing this line:
    /home/raju/app/provisioning/provisioning-build/dbserver-build.xml:820: OUI10g installer failed: /home/raju/stage/installers/database/Disk1/runInstaller

    Regards,
    Kaasi

  12. saud
    Reply | Quote
    Sep 4th, 2015 at 15:05 | #16

    Tushar is fusion BI and BI Apps (OBIA) are same thing

    • test
      Reply | Quote
      Sep 23rd, 2015 at 10:17 | #17

      I have an instance of Oracle Fusion Cloud and it is up and working fine. But the functional set up in the instance is wrong and we need to scrap the data altogether and need to re-implement. what are the steps to do that. And since Oracle is itself handling cloud support, will there be any impact on licensing?

  13. prakhar sinha
    Reply | Quote
    Aug 1st, 2015 at 14:39 | #18

    hi tushar
    can you tell me your server configuration? i am thinking of buying new server for fusion. can you give some recommendation on what server to use.
    which brand server you used? and how much did it cost to buy the server

  14. Bachan
    Reply | Quote
    Apr 13th, 2015 at 02:41 | #19

    Hi Tushar,

    I am installing 11.1.9 and i got error @ postconfigure step. server has two nodes fahost (IDMNode) and fusionapp (FANode).

    Build Message for Customer Relation Management product family.
    Build Message for Supply Chain Management product family.

    And the error detail for both the product family is below, difference is only product name “CRMDomain” “SCMDomain”.

    ***********Error Stack *************
    Details of Error task: [] SOA Suite: private-shutdown-server nodeManagerStopServer –

    BUILD_ERROR : The WLST operation could not be carried out. Please check the log files in the logs folder of

    appropriate server sub directory under /app/oracle/instance/domains/fusionapp/CRMDomain/servers/ to find out

    details of the problem.

    Details of Error task: [] SOA Suite: private-shutdown-server nodeManagerStopServer –

    BUILD_ERROR : Process execution failed with return code: 1. Check the logs for more information. See

    /app/oracle/provisioning/debug/fusionapp/postconfigure_12_04/nodeManagerStopServer_CRMDomain1836041941380973316.py

    Details of Error task: [] SOA Suite: private-shutdown-server nodeManagerStopServer –

    BUILD_ERROR : Process execution failed with return code: 1. Check the logs for more information.

    Details of Error task: [] SOA Suite: listener-log-status-in-error private-shutdown-

    server – BUILD_ERROR Process execution failed with return code: 1. Check the logs for more information.
    **********************************

    I tried to restart the node manager which was already running and listening @ 5556, after Retry i was getting bellow error.

    **************Error in Retry ***************
    Performing clean-up operations on fusionapp host… Done
    Performing restore operations on fusionapp host…
    An error has occurred.
    Error messages from runProvisioning-restore-postconfigure-logstatus.log:
    [2015-04-13 01:36:20 IST] restore-postconfigure ldapDelete – Could not delete DN

    cn=crm,cn=FusionDomain,cn=JPSContext,cn=FAPolicies from ldap://fahost.fap.com:3060 with recurse = true: LDAP

    response read timed out, timeout used:240000ms.
    [2015-04-13 01:36:21 IST] listener-log-status-in-error restore-postconfigure – ERROR : The following error

    occurred while executing this line:
    /app/fusion/provisioning/provisioning-build/common-restart-build.xml:2637: The following error occurred

    while executing this line:
    /app/fusion/provisioning/provisioning-build/common-restart-build.xml:2675: Could not delete DN

    cn=crm,cn=FusionDomain,cn=JPSContext,cn=FAPolicies from ldap://fahost.fap.com:3060 with recurse = true: LDAP

    response read timed out, timeout used:240000ms.

    Additional Manual Operations:
    – Fix the restore error manually on fusionapp host.

    After completing these step(s), click “OK” to continue restart of Postconfigure.

    Error: Restore has not been completed on all hosts. After completing all restore steps, click “OK” to

    continue restart of Postconfigure.

    ***************************************
    Can u please help me with some guidelines.

    Reg,
    Bachan

  15. Pritish
    Reply | Quote
    Apr 8th, 2015 at 09:30 | #20

    Hi Tushar,

    First best of luck for book!! Waiting for it eagerly…

    I want to know if you have any idea that, if Fusion Apps 11.1.7 can be upgraded to 11.1.9.2 directly or we need to go for 11.1.7–>11.1.8–>11.1.9.2

    Also, do you have any tutorial for upgrade of Fusion Apps?

    Pritish

    • Pritish
      Reply | Quote
      Apr 10th, 2015 at 12:23 | #21

      Just confirmed with Oracle, There is no direct upgrade from Fusion Applications 11.1.7 to 11.1.9, you will need to do a two step upgrade. First upgrade from 11.1.7 to 11.1.8 then 11.1.8 to 11.1.9.2.

      Tushar Do you have any upgrade tutorials for the any versions of Fusion Apps, since i am doing it for first time, having some screenshots would help 😉

      • Tushar Thakker
        Reply | Quote
        Apr 20th, 2015 at 15:23 | #22

        Sorry for delayed response. I am going to start a series of tutorials on Fusion Applications soon. Stay tuned !

  16. prakhar sinha
    Reply | Quote
    Apr 5th, 2015 at 08:35 | #23

    hi tushar,
    do you have video tutorial for oracle fusion installation. that would be great help if you can provide me with video link.

  17. prakhar sinha
    Reply | Quote
    Mar 24th, 2015 at 04:48 | #24

    hi tushar,
    can you guide me through single node installation? as i have single server of 192 gb ram. is it possible to install fusion on a single server?

    • Tushar Thakker
      Reply | Quote
      Mar 24th, 2015 at 04:54 | #25

      Dear Prakhar,

      You should use the same physical server only, just create two Linux VMs on the same server for IDM and FA each. Keeping single server or VM for both nodes is not recommended due to overlapping ports.

      Good luck.
      Tushar

  18. Srinivasa Pradhano
    Reply | Quote
    Jan 14th, 2015 at 05:46 | #26

    Dear Tushar,

    Iam Interested in Oracle Fusion Applications 11.1.8 Virtual Machines
    Could you send to me detail, how to pay & how to deliver ?

    Thank you
    Srinivas

  19. hyder
    Reply | Quote
    Dec 24th, 2014 at 14:34 | #27

    Hi Tushar,

    I have 3 server of each 32GB memory ,can we install at least a For single product of Fusion Apps 11.1.8 .

    or
    The ‘fahost’ can distribute in two servers ….

    please update ,thanks in advance…

    Best Regards…
    Hyd

    • Tushar Thakker
      Reply | Quote
      Dec 25th, 2014 at 06:08 | #28

      Dear Hyder,

      Sorry for the delayed response. Yes you can install FA 11.1.8 HCM or Accounting Hub or both by distributing managed servers across all 3 nodes

      Regards
      Tushar

  20. Ibrahim Khan
    Reply | Quote
    Dec 1st, 2014 at 12:20 | #29

    Hi Tushar,

    I wanted to know whether it is possible to install Oracle Financial Module of Fusion Application on a system that has Intel i7 processor, 1 TB HDD, and 32GB of memory.

    Awaiting your revert

    • Tushar Thakker
      Reply | Quote
      Dec 2nd, 2014 at 04:34 | #30

      Do not want to dishearten you but the answer is No, you cannot install Fusion Financials with 32GB of system memory. There are 2 nodes with first node requiring “minimum” 10GB memory while second node with minimum 104GB memory and also 2 physical CPUs (quad core or more)

      Regards
      Tushar

  21. afaq
    Reply | Quote
    Nov 22nd, 2014 at 17:42 | #31

    Hi Tushar
    I am looking for the subscription offer to the fusion servers,kindly provide me with details

    Regards
    Afaq

  22. Rajesh P
    Reply | Quote
    Nov 19th, 2014 at 22:29 | #32

    Hi Tushar,
    We have installed BI module aslo in FA.
    Running Any dashboard shows Below Error.
    State: HY000. Code: 10058. [NQODBC] [SQL_STATE: HY000] [nQSError: 10058] A general error has occurred. [nQSError: 43113] Message returned from OBIS. [nQSError: 43119] Query Failed: [nQSError: 17001] Oracle Error code: 12154, message: ORA-12154: TNS:could not resolve the connect identifier specified at OCI call OCIServerAttach. [nQSError: 17014] Could not connect to Oracle database. (HY000)
    Navigation: Login FA-> Navigator -> under tools and options -> Reports and Analytics -> click on book symbole(browser) it will redirect to BI Dashboards. From My folder select any daskboard and try to run>

  23. Rajesh P
    Reply | Quote
    Nov 12th, 2014 at 11:18 | #33

    Hi Tushar,

    We have installed BI module aslo in FA.

    Running Any dashboard shows Below Error.

    State: HY000. Code: 10058. [NQODBC] [SQL_STATE: HY000] [nQSError: 10058] A general error has occurred. [nQSError: 43113] Message returned from OBIS. [nQSError: 43119] Query Failed: [nQSError: 17001] Oracle Error code: 12154, message: ORA-12154: TNS:could not resolve the connect identifier specified at OCI call OCIServerAttach. [nQSError: 17014] Could not connect to Oracle database. (HY000)

    Navigation: Login FA-> Navigator -> under tools and options -> Reports and Analytics -> click on book symbole(browser) it will redirect to BI Dashboards. From My folder select any daskboard and try to run>

    • Swapna
      Reply | Quote
      Nov 17th, 2014 at 13:55 | #34

      Can someone please clarify this for me?

      Node2 Virtual machine(fahost). Do we have to provision the same way (follow the same steps) like how we provisioned IDM machine (procedure listed below)
      before we start with FA application installation?

      http://www.oratraining.com/blog/2013/11/install-fusion-applications-provisioning-framework-on-idm-host/

      Thanks,
      Swapna

      • Tushar Thakker
        Reply | Quote
        Nov 17th, 2014 at 17:51 | #35

        Dear Swapna,

        We just need to install the provisioning framework and database as mentioned in our steps. Other steps are different. Follow our guide and you will not face any issues.

        Regards
        Tushar
        For ORA Training

  24. Amit
    Reply | Quote
    Nov 5th, 2014 at 05:52 | #36

    Thanks Tushar,

    It was really helpful. I was able to successfully install Fusion Apps 11.1.8.

    • Tushar Thakker
      Reply | Quote
      Nov 5th, 2014 at 06:06 | #37

      Thank you Amit. We are glad that our work is helping Fusion Applications aspirants like you to achieve your learning goals.

      -Tushar
      ORATraining.com

  25. Khun
    Reply | Quote
    Oct 24th, 2014 at 12:34 | #38

    Hi,
    For the easiest installation is it ok only one Oracle VirtualBox VM with Oracle Linux x86-64 OS as guest and Windows 2008 as host OS?
    Thanks!

    • Tushar Thakker
      Reply | Quote
      Oct 24th, 2014 at 15:46 | #39

      You could try that. In fact we were using single node setup until 11.1.5 for our blog but later Oracle suggested to keep both DB in separate node as we mentioned in the blog. Theoretically both are possible.

      Thanks

      • Khun
        Reply | Quote
        Oct 27th, 2014 at 14:07 | #40

        Hi Tushar ,
        Firstly great post, and thanks for your answer.
        Is there any minimun requirimentes for the windows host?
        Thanks!

      • Raj
        Reply | Quote
        Nov 1st, 2014 at 15:19 | #41

        Hi Tushar,

        Can you please help us with the hosting solutions for Fusion HCM?

        we have a need for small group of concurrent users.

        Thanks
        Raj

  26. loganathan
    Reply | Quote
    Oct 24th, 2014 at 09:47 | #43

    Hi Tushar,

    We are planning to buy new server for fusion middleware. Please can you give me idea on system requirements.

  27. Khun
    Reply | Quote
    Oct 23rd, 2014 at 20:22 | #44

    Hi , I am starting with the installation. I want to make the easiest one.
    Do I need only one VM with Oracle Linux x86-64 OS as guest and Windows 2008 as host OS?
    Thanks.

  28. Atul
    Reply | Quote
    Sep 4th, 2014 at 07:48 | #45

    HI Tushar,

    Can you Please help me as i am not able to open authorization policy manager Page

    https://hostname:10634/apm/faces/AuthPolicyMgr.jsp and getting below error
    Failure of server APACHE bridge:

    No backend server available for connection: timed out after 10 seconds or idempotent set to OFF or method not idempotent.

  29. Nancy
    Reply | Quote
    Aug 30th, 2014 at 09:11 | #46

    Dear Tushar
    We are looking for a remote access site like the Beacon site for eBusiness? Do you provide it? Or a VM image where I can download. Thank you for the great work you published here.

    Nancy

  30. Mohit
    Reply | Quote
    Aug 27th, 2014 at 19:34 | #47

    Hi,
    We followed the steps provided in this article and on node1 installed IDM, on node2 we are trying to install Fusion Applications (Product Management only) but are stuck at the install phase and keep getting below error:

    “DatabaseClient: private-install-dbclient oui10g – BUILD_ERROR : OUI10g installer failed: /u01/dumps/FusionApps/Stage/installers/dbclient/client/runInstaller [2014-08-27 15:24:07 EDT] DatabaseClient: listener-log-status-in-error private-install-dbclient – BUILD_ERROR”

    Really appreciate any pointers on resolving this issue.

    Thanks,
    Mohit

    • Mohit
      Reply | Quote
      Aug 27th, 2014 at 21:59 | #48

      Update: in the logs just before this error I see the below error, this might be the root cause of the earlier mentioned error.
      Appreciate if someone can help in resolving the error.
      ”
      Preparing to launch Oracle Universal Installer from /tmp/OraInstall2014-08-27_05-55-24PM. Please wait …[../stage/Components/oracle.jdk/1.5.0.11.0/1/DataFiles/lib.jar]
      End-of-central-directory signature not found. Either this file is not
      a zipfile, or it constitutes one disk of a multi-part archive. In the
      latter case the central directory and zipfile comment will be found on
      the last disk(s) of this archive.
      note: ../stage/Components/oracle.jdk/1.5.0.11.0/1/DataFiles/lib.jar may be a plain executable, not an archive
      ”

      Thanks

      • Ibrahim Khan
        Reply | Quote
        Oct 13th, 2014 at 08:13 | #49

        Hi Mohit,

        I am stuck on the same error,
        were u able to resolve it?

  31. Dhanraj Nikam
    Reply | Quote
    Aug 15th, 2014 at 07:47 | #50

    Hi
    Can somebody assist me to prepare Node 1 , Node 2 and connection in between on Oracle VM

    – Dhanraj

    • Tushar Thakker
      Reply | Quote
      Aug 15th, 2014 at 10:51 | #51

      Dear Dhanraj,

      Which step exactly are you stuck at so that we can help accordingly.

      Regards
      Tushar

      • Dhanraj Nikam
        Reply | Quote
        Aug 15th, 2014 at 14:22 | #52

        Hi Tushar,

        First Very thank for the response.

        I am very much comfortable with Windows OS and I tried to install on windows server but it was fail because of lack of RAM.

        I am lilbit aware about linux OS so , now i am planning with linux server. so how need to know how i can configure these two nodes and after that i will follow your above steps.

        Just need more information about the Unix Os version, Oracle VM and from where i can get it.

        Thanks,
        Dhanraj

        • Tushar Thakker
          Reply | Quote
          Aug 18th, 2014 at 08:06 | #53

          Dear Dhanraj,

          Please note that you need someone good at Unix while doing installation of the same since it involves a lot of steps where you may need to work directly in Unix shell. We have used Oracle Linux 5.x and Oracle VirtualBox for virtualization.

          Regards
          Tushar

  32. Matt Symes
    Reply | Quote
    Aug 14th, 2014 at 15:37 | #54

    With reference to your node 2 requirements:
    ——————————
    Node 2
    Hostname: fahost
    OS: Oracle Linux x86-64
    Disk size: 500 GB
    Memory:

    Option 1. For single product (except Financials, CRM or SCM) : Minimum 64+ GB (Recommended 96+ GB)
    Option 2: For Financials or CRM or SCM: Minimum 88+ GB (Recommended 128 GB)
    Option 3: For all products selected: Minimum 144+ GB
    ————————–

    I have access to 3 PCs each with 32GB memory – would it be possible to split your node2 Financials install across these 3 machines and how would you suggest the components be so divided? (I have a laptop with 16GB memory which I will use for running your node1 (idmhost) under Virtualbox)

    Regards,

    – Matt Symes

  33. revati
    Reply | Quote
    Aug 1st, 2014 at 15:08 | #56

    HI ,

    We are facing below error while installating/patching Node 2 webgate component

    ###Required component(s) missing : [ oracle.as.upgrade, 11.1.1.7.0 ]
    ####

    please find below stack trace

    Oracle Home : /fusion/app/oracle/webtier_mwhome/webgate

    Central Inventory : /fusion/oraInventory

    from : /fusion/app/oracle/webtier_mwhome/webgate/oraInst.loc

    OPatch version : 11.1.0.10.3

    OUI version : 11.1.0.9.0

    OUI location : /fusion/app/oracle/webtier_mwhome/webgate/oui

    Log file location : /fusion/app/oracle/webtier_mwhome/webgate/cfgtoollogs/opatch/opatch2014-07-29_16-00-26PM_1.log

    [Jul 29, 2014 4:00:35 PM] Patch history file: /fusion/app/oracle/webtier_mwhome/webgate/cfgtoollogs/opatch/opatch_history.txt

    [Jul 29, 2014 4:00:37 PM] Verifying environment and performing prerequisite checks…

    [Jul 29, 2014 4:00:37 PM] Checking conflict among patches…

    [Jul 29, 2014 4:00:37 PM] Patch ID 16928612

    [Jul 29, 2014 4:00:37 PM] Patches that conflict: [ ]

    [Jul 29, 2014 4:00:37 PM] Checking conflicts for patch : 16928612

    [Jul 29, 2014 4:00:38 PM] Checking if Oracle Home has components required by patches…

    [Jul 29, 2014 4:00:38 PM] OUI-67073:UtilSession failed: Patch 16928612 requires component(s) that are not installed in OracleHome. These not-installed components are oracle.as.upgrade:11.1.1.7.0,

    [Jul 29, 2014 4:00:38 PM] Finishing UtilSession at Tue Jul 29 16:00:38 IST 2014

    [Jul 29, 2014 4:00:38 PM] Log file location: /fusion/app/oracle/webtier_mwhome/webgate/cfgtoollogs/opatch/opatch2014-07-29_16-00-26PM_1.log

    [Jul 29, 2014 4:00:38 PM] Stack Description: java.lang.RuntimeException: Patch 16928612 requires component(s) that are not installed in OracleHome. These not-installed components are oracle.as.upgrade:11.1.1.7.0,

    [Jul 29, 2014 4:00:38 PM] StackTrace: oracle.opatch.opatchutil.NApply.process(NApply.java:1051)

    [Jul 29, 2014 4:00:38 PM] StackTrace: oracle.opatch.opatchutil.OUSession.napply(OUSession.java:1098)

    [Jul 29, 2014 4:00:38 PM] StackTrace: sun.reflect.NativeMethodAccessorImpl.invoke0(Native Method)

    [Jul 29, 2014 4:00:38 PM] StackTrace: sun.reflect.NativeMethodAccessorImpl.invoke(NativeMethodAccessorImpl.java:39)

    [Jul 29, 2014 4:00:38 PM] StackTrace: sun.reflect.DelegatingMethodAccessorImpl.invoke(DelegatingMethodAccessorImpl.java:25)

    [Jul 29, 2014 4:00:38 PM] StackTrace: java.lang.reflect.Method.invoke(Method.java:597)

    [Jul 29, 2014 4:00:38 PM] StackTrace: oracle.opatch.UtilSession.process(UtilSession.java:305)

    [Jul 29, 2014 4:00:38 PM] StackTrace: oracle.opatch.OPatchSession.main(OPatchSession.java:2304)

    [Jul 29, 2014 4:00:38 PM] StackTrace: oracle.opatch.OPatch.main(OPatch.java:666)

    —

    Kindly provide suggestions on the same.

    Revati

  34. prasanna
    Reply | Quote
    Jun 30th, 2014 at 09:19 | #57

    Dear friends

    We installed fusion application 11.1.7 installation sucessfully completed after i clicked the next button preconfig we faced some error in functional setup module could u please help me guys

  35. Rajesh P
    Reply | Quote
    Apr 28th, 2014 at 13:19 | #58

    Hi Tushar,

    Thanks for the Installation Steps. I have completed 11.1.8 successful.

    While stating the Fusion Applications services using FASTARTSTOP utility. It keep on try to start few services finally shows failed few. see blow and help to fix the same.
    [NOTIFICATION:1] [oracle.apps.startstop.execution.executor.StartStopTask: call.271] [tid:18] Parallel execution completed for domain CommonDomain
    [NOTIFICATION:1] [oracle.apps.startstop.execution.executor.WLExecutor: execute.135] [tid:10] Parallel operation of Start/Stop utility completed on taxonomy domains.

    [NOTIFICATION:1] [oracle.apps.startstop.execution.executor.WLExecutor: postRunProcess.399] [tid:10] Processing AdminServers for post-run status
    [NOTIFICATION:1] [oracle.apps.startstop.execution.executor.WLExecutor: postRunProcess.503] [tid:10] Post-run processing of AdminServers is completed.

    [NOTIFICATION:1] [oracle.apps.startstop.execution.executor.WLExecutor: logAdminServerStatus.228] [tid:10] Logging final status of AdminServers for processed domains :
    [NOTIFICATION:1] [oracle.apps.startstop.execution.executor.WLExecutor: logAdminServerStatus.243] [tid:10] Status of ProcurementDomain AdminServer is RUNNING.
    [NOTIFICATION:1] [oracle.apps.startstop.execution.executor.WLExecutor: logAdminServerStatus.243] [tid:10] Status of SCMDomain AdminServer is RUNNING.
    [NOTIFICATION:1] [oracle.apps.startstop.execution.executor.WLExecutor: logAdminServerStatus.243] [tid:10] Status of CRMDomain AdminServer is RUNNING.
    [NOTIFICATION:1] [oracle.apps.startstop.execution.executor.WLExecutor: logAdminServerStatus.243] [tid:10] Status of BIDomain AdminServer is RUNNING.
    [NOTIFICATION:1] [oracle.apps.startstop.execution.executor.WLExecutor: logAdminServerStatus.243] [tid:10] Status of HCMDomain AdminServer is RUNNING.
    [NOTIFICATION:1] [oracle.apps.startstop.execution.executor.WLExecutor: logAdminServerStatus.243] [tid:10] Status of FinancialDomain AdminServer is RUNNING.
    [NOTIFICATION:1] [oracle.apps.startstop.execution.executor.WLExecutor: logAdminServerStatus.243] [tid:10] Status of ICDomain AdminServer is RUNNING.
    [NOTIFICATION:1] [oracle.apps.startstop.execution.executor.WLExecutor: logAdminServerStatus.243] [tid:10] Status of CommonDomain AdminServer is RUNNING.
    [NOTIFICATION:1] [oracle.apps.startstop.execution.executor.WLExecutor: logAdminServerStatus.243] [tid:10] Status of ProjectsDomain AdminServer is RUNNING.
    [NOTIFICATION:1] [oracle.apps.startstop.cli.Controller: start.131] [tid:10] Execution completed.

    [NOTIFICATION:1] [oracle.apps.startstop.util.common.SSUtils: validateDomains.3069] [tid:10] ### ———————————————
    [ERROR:1] [oracle.apps.startstop.util.common.SSUtils: validateDomains.3176] [tid:10] Command failed on domain ProcurementDomain. Please check the log file ProcurementDomain.log for details.
    [ERROR:1] [oracle.apps.startstop.util.common.SSUtils: validateDomains.3176] [tid:10] Command failed on domain SCMDomain. Please check the log file SCMDomain.log for details.
    [ERROR:1] [oracle.apps.startstop.util.common.SSUtils: validateDomains.3176] [tid:10] Command failed on domain CRMDomain. Please check the log file CRMDomain.log for details.
    [ERROR:1] [oracle.apps.startstop.util.common.SSUtils: validateDomains.3176] [tid:10] Command failed on domain BIDomain. Please check the log file BIDomain.log for details.
    [ERROR:1] [oracle.apps.startstop.util.common.SSUtils: validateDomains.3176] [tid:10] Command failed on domain HCMDomain. Please check the log file HCMDomain.log for details.
    [ERROR:1] [oracle.apps.startstop.util.common.SSUtils: validateDomains.3176] [tid:10] Command failed on domain FinancialDomain. Please check the log file FinancialDomain.log for details.
    [ERROR:1] [oracle.apps.startstop.util.common.SSUtils: validateDomains.3176] [tid:10] Command failed on domain ICDomain. Please check the log file ICDomain.log for details.
    [ERROR:1] [oracle.apps.startstop.util.common.SSUtils: validateDomains.3176] [tid:10] Command failed on domain CommonDomain. Please check the log file CommonDomain.log for details.
    [ERROR:1] [oracle.apps.startstop.util.common.SSUtils: validateDomains.3176] [tid:10] Command failed on domain ProjectsDomain. Please check the log file ProjectsDomain.log for details.

    [NOTIFICATION:1] [oracle.apps.startstop.util.common.SSUtils: validateDomains.3181] [tid:10] ### ———————————————
    [NOTIFICATION:1] [oracle.apps.startstop.cli.FAEnv: runStartStop.123] [tid:10] .
    [NOTIFICATION:1] [oracle.apps.startstop.cli.FAEnv: runStartStop.124] [tid:10] Result xml location = /app/oracle/instance/lcm/logs/FAStartStop/fa.ocs.com/fastartstop_result.xml
    [NOTIFICATION:1] [oracle.apps.startstop.cli.FAEnv: runStartStop.129] [tid:10] Report xml location = /app/oracle/instance/lcm/logs/FAStartStop/fa.ocs.com/fastartstop_logreport.xml
    [NOTIFICATION:1] [oracle.apps.startstop.cli.FAEnv: runStartStop.133] [tid:10] FAStartStop log location = /app/oracle/instance/lcm/logs/FAStartStop/fa.ocs.com/fastartstop_2014-04-21_17-35-43.log
    [NOTIFICATION:1] [oracle.apps.startstop.cli.FAEnv: main.362] [tid:10] Start time : Mon Apr 21 17:35:43 IST 2014
    [NOTIFICATION:1] [oracle.apps.startstop.cli.FAEnv: main.364] [tid:10] End time : Mon Apr 21 18:24:05 IST 2014
    [NOTIFICATION:1] [oracle.apps.startstop.cli.FAEnv: main.365] [tid:10] Run completed in 00 Hours 48 Minutes 22 Seconds
    [NOTIFICATION:1] [oracle.apps.startstop.util.common.SSUtils: displayExecutionTime.3392] [tid:10]
    ————————————————————
    Logging execution time of servers …
    2014-04-21T17:38:18 IST – [START] of [AdminServer] in SCMDomain took : 00 Hours 02 Minutes 02 Seconds
    2014-04-21T17:38:18 IST – [START] of [AdminServer] in ICDomain took : 00 Hours 02 Minutes 02 Seconds
    2014-04-21T17:38:18 IST – [START] of [AdminServer] in ProcurementDomain took : 00 Hours 02 Minutes 03 Seconds
    2014-04-21T17:38:20 IST – [START] of [AdminServer] in ProjectsDomain took : 00 Hours 02 Minutes 05 Seconds
    2014-04-21T17:38:24 IST – [START] of [AdminServer] in BIDomain took : 00 Hours 02 Minutes 09 Seconds
    2014-04-21T17:38:29 IST – [START] of [AdminServer] in FinancialDomain took : 00 Hours 02 Minutes 13 Seconds
    2014-04-21T17:38:30 IST – [START] of [AdminServer] in CRMDomain took : 00 Hours 02 Minutes 14 Seconds
    2014-04-21T17:38:32 IST – [START] of [AdminServer] in HCMDomain took : 00 Hours 02 Minutes 17 Seconds
    2014-04-21T17:41:42 IST – [START] of [AdminServer] in CommonDomain took : 00 Hours 05 Minutes 27 Seconds
    2014-04-21T17:54:52 IST – [START] of [odi_server1] in ICDomain took : 00 Hours 16 Minutes 32 Seconds
    2014-04-21T17:57:03 IST – [START] of [ess_server1] in ICDomain took : 00 Hours 18 Minutes 41 Seconds
    2014-04-21T18:00:53 IST – [START] of [ess_server1] in ProcurementDomain took : 00 Hours 22 Minutes 30 Seconds
    2014-04-21T18:13:36 IST – [START] of [SupplierPortalServer_1] in ProcurementDomain took : 00 Hours 35 Minutes 13 Seconds
    2014-04-21T18:02:53 IST – [START] of [ess_server1] in ProjectsDomain took : 00 Hours 24 Minutes 30 Seconds
    2014-04-21T18:01:04 IST – [START] of [FinancialSearchServer_1] in FinancialDomain took : 00 Hours 22 Minutes 31 Seconds
    2014-04-21T18:07:38 IST – [START] of [ess_server1] in FinancialDomain took : 00 Hours 29 Minutes 05 Seconds
    2014-04-21T18:02:06 IST – [START] of [FinancialAnalyticsServer_1] in FinancialDomain took : 00 Hours 23 Minutes 32 Seconds
    2014-04-21T18:12:03 IST – [START] of [AdvancedPlanningServer_1] in SCMDomain took : 00 Hours 33 Minutes 39 Seconds
    2014-04-21T18:18:18 IST – [START] of [GlobalizationServer_1] in SCMDomain took : 00 Hours 39 Minutes 53 Seconds
    2014-04-21T18:03:16 IST – [START] of [odi_server1] in SCMDomain took : 00 Hours 24 Minutes 51 Seconds
    2014-04-21T18:08:10 IST – [START] of [ess_server1] in SCMDomain took : 00 Hours 29 Minutes 44 Seconds
    2014-04-21T18:11:03 IST – [START] of [HCMSearchServer_1] in HCMDomain took : 00 Hours 32 Minutes 24 Seconds
    2014-04-21T18:01:27 IST – [START] of [HCMAnalyticsServer_1] in HCMDomain took : 00 Hours 22 Minutes 46 Seconds
    2014-04-21T18:17:10 IST – [START] of [ess_server1] in HCMDomain took : 00 Hours 38 Minutes 29 Seconds
    2014-04-21T18:05:00 IST – [START] of [odi_server1] in HCMDomain took : 00 Hours 26 Minutes 18 Seconds
    2014-04-21T18:16:28 IST – [START] of [BenefitsServer_1] in HCMDomain took : 00 Hours 37 Minutes 47 Seconds
    2014-04-21T18:08:18 IST – [START] of [CRMSearchServer_1] in CRMDomain took : 00 Hours 29 Minutes 42 Seconds
    2014-04-21T17:58:33 IST – [START] of [EmailMarketingServer_1] in CRMDomain took : 00 Hours 19 Minutes 56 Seconds
    2014-04-21T18:19:35 IST – [START] of [ess_server1] in CRMDomain took : 00 Hours 40 Minutes 57 Seconds
    2014-04-21T18:08:28 IST – [START] of [odi_server1] in CRMDomain took : 00 Hours 29 Minutes 49 Seconds
    2014-04-21T18:07:37 IST – [START] of [CRMAnalyticsServer_1] in CRMDomain took : 00 Hours 28 Minutes 59 Seconds
    2014-04-21T18:14:09 IST – [START] of [UCM_server1] in CommonDomain took : 00 Hours 32 Minutes 03 Seconds
    2014-04-21T18:18:40 IST – [START] of [HomePageServer_1] in CommonDomain took : 00 Hours 36 Minutes 34 Seconds
    2014-04-21T18:11:36 IST – [START] of [search_server1] in CommonDomain took : 00 Hours 29 Minutes 28 Seconds
    2014-04-21T18:08:12 IST – [START] of [WC_Collaboration] in CommonDomain took : 00 Hours 26 Minutes 03 Seconds
    2014-04-21T17:57:57 IST – [START] of [wlcs_server1] in CommonDomain took : 00 Hours 15 Minutes 42 Seconds
    2014-04-21T18:12:37 IST – [START] of [IPM_server1] in CommonDomain took : 00 Hours 30 Minutes 22 Seconds
    2014-04-21T18:23:23 IST – [START] of [ess_server1] in CommonDomain took : 00 Hours 41 Minutes 09 Seconds
    2014-04-21T17:57:16 IST – [START] of [wlcs_sipstate1] in CommonDomain took : 00 Hours 15 Minutes 00 Seconds
    ————————————————————
    [NOTIFICATION:1] [oracle.apps.startstop.util.common.SSUtils: removeServerStatusPropsFile.2010] [tid:10] Deleting /app/oracle/instance/lcm/temp/FAStartStop/fa.ocs.com/fastartstop_serverstatus.properties file
    Logger instance removed

    Oracle Fusion Applications Start Stop Utility failed with error code 1

    • ViveK
      Reply | Quote
      Jun 5th, 2014 at 07:58 | #59

      Dear All,
      I am looking for Oracle Fusion functional instance remote access. If any one can know / provide the remote access please reach us vivek.mba18@gmail.com
      Regards
      Vivek
      +91 9177351577
      skype: vivek_1438

      • Tushar Thakker
        Reply | Quote
        Jun 5th, 2014 at 11:09 | #60

        Dear Vivek,

        We are going to provide the same soon. We will keep you posted and you also stay tuned to our blog for the updates.

        Regards
        Team ORA Training

    • rajkumar
      Reply | Quote
      Jun 25th, 2014 at 12:36 | #61

      Hi Rajesh P,

      I am trying to install oracle fusion application 11.1.8 but failing at postconfigure phase of identity management provisioing . The error is given below .

      2014-06-24T12:53:55.994-04:00] [runIDMProvisioning-postconfigure] [NOTIFICATION] [] [runIDMProvisioning-postconfigure] [tid: 88] [ecid: 0000KREldPPEwGx_S9O5yc1JeQIB00001F,0] [exec] [CONFIG] [Bootstrap Domain Configuration] [Create ASInstance ]:
      [2014-06-24T12:53:55.996-04:00] [runIDMProvisioning-postconfigure] [NOTIFICATION] [] [runIDMProvisioning-postconfigure] [tid: 88] [ecid: 0000KREldPPEwGx_S9O5yc1JeQIB00001F,0] [exec] [CONFIG]:Create ASInstance
      [2014-06-24T12:56:00.197-04:00] [runIDMProvisioning-postconfigure] [NOTIFICATION] [] [runIDMProvisioning-postconfigure] [tid: 88] [ecid: 0000KREldPPEwGx_S9O5yc1JeQIB00001F,0] [exec] [CONFIG] [Bootstrap Domain Configuration] [Create ASInstance ]:
      [2014-06-24T12:56:00.198-04:00] [runIDMProvisioning-postconfigure] [NOTIFICATION] [] [runIDMProvisioning-postconfigure] [tid: 88] [ecid: 0000KREldPPEwGx_S9O5yc1JeQIB00001F,0] [exec] Error creating ASInstance oif_inst.
      [2014-06-24T12:56:00.199-04:00] [runIDMProvisioning-postconfigure] [NOTIFICATION] [] [runIDMProvisioning-postconfigure] [tid: 88] [ecid: 0000KREldPPEwGx_S9O5yc1JeQIB00001F,0] [exec] Cause:
      [2014-06-24T12:56:00.199-04:00] [runIDMProvisioning-postconfigure] [NOTIFICATION] [] [runIDMProvisioning-postconfigure] [tid: 88] [ecid: 0000KREldPPEwGx_S9O5yc1JeQIB00001F,0] [exec] An internal operation has failed: Error in starting opmn server
      [2014-06-24T12:56:00.200-04:00] [runIDMProvisioning-postconfigure] [NOTIFICATION] [] [runIDMProvisioning-postconfigure] [tid: 88] [ecid: 0000KREldPPEwGx_S9O5yc1JeQIB00001F,0] [exec] Operation aborted because of a system call failure or internal error
      [2014-06-24T12:56:00.200-04:00] [runIDMProvisioning-postconfigure] [NOTIFICATION] [] [runIDMProvisioning-postconfigure] [tid: 88] [ecid: 0000KREldPPEwGx_S9O5yc1JeQIB00001F,0] [exec] Action:
      [2014-06-24T12:56:00.201-04:00] [runIDMProvisioning-postconfigure] [NOTIFICATION] [] [runIDMProvisioning-postconfigure] [tid: 88] [ecid: 0000KREldPPEwGx_S9O5yc1JeQIB00001F,0] [exec] See logs for more details.
      [2014-06-24T12:56:00.201-04:00] [runIDMProvisioning-postconfigure] [NOTIFICATION] [] [runIDMProvisioning-postconfigure] [tid: 88] [ecid: 0000KREldPPEwGx_S9O5yc1JeQIB00001F,0] [exec] [CONFIG] FAILED:Create ASInstance
      [2014-06-24T12:56:00.202-04:00] [runIDMProvisioning-postconfigure] [NOTIFICATION] [] [runIDMProvisioning-postconfigure] [tid: 88] [ecid: 0000KREldPPEwGx_S9O5yc1JeQIB00001F,0] [exec] Question Received:
      [2014-06-24T12:56:00.202-04:00] [runIDMProvisioning-postconfigure] [NOTIFICATION] [] [runIDMProvisioning-postconfigure] [tid: 88] [ecid: 0000KREldPPEwGx_S9O5yc1JeQIB00001F,0] [exec] Error creating ASInstance oif_inst.
      [2014-06-24T12:56:00.203-04:00] [runIDMProvisioning-postconfigure] [NOTIFICATION] [] [runIDMProvisioning-postconfigure] [tid: 88] [ecid: 0000KREldPPEwGx_S9O5yc1JeQIB00001F,0] [exec] Cause:
      [2014-06-24T12:56:00.203-04:00] [runIDMProvisioning-postconfigure] [NOTIFICATION] [] [runIDMProvisioning-postconfigure] [tid: 88] [ecid: 0000KREldPPEwGx_S9O5yc1JeQIB00001F,0] [exec] An internal operation has failed: Error in starting opmn server
      [2014-06-24T12:56:00.204-04:00] [runIDMProvisioning-postconfigure] [NOTIFICATION] [] [runIDMProvisioning-postconfigure] [tid: 88] [ecid: 0000KREldPPEwGx_S9O5yc1JeQIB00001F,0] [exec] Operation aborted because of a system call failure or internal error
      [2014-06-24T12:56:00.204-04:00] [runIDMProvisioning-postconfigure] [NOTIFICATION] [] [runIDMProvisioning-postconfigure] [tid: 88] [ecid: 0000KREldPPEwGx_S9O5yc1JeQIB00001F,0] [exec] Action:
      [2014-06-24T12:56:00.205-04:00] [runIDMProvisioning-postconfigure] [NOTIFICATION] [] [runIDMProvisioning-postconfigure] [tid: 88] [ecid: 0000KREldPPEwGx_S9O5yc1JeQIB00001F,0] [exec] See logs for more details.
      [2014-06-24T12:56:00.209-04:00] [runIDMProvisioning-postconfigure] [NOTIFICATION] [] [runIDMProvisioning-postconfigure] [tid: 88] [ecid: 0000KREldPPEwGx_S9O5yc1JeQIB00001F,0] [exec] Configuration:Bootstrap Domain Configuration failed
      [2014-06-24T12:56:00.218-04:00] [runIDMProvisioning-postconfigure] [NOTIFICATION] [] [runIDMProvisioning-postconfigure] [tid: 88] [ecid: 0000KREldPPEwGx_S9O5yc1JeQIB00001F,0] [exec] [CONFIG] [Bootstrap Domain Configuration] [Create Enterprise Manager Agent ]:

      Can you please suggest what may have went wrong ?

      Thanks Rajkumar

  36. Anil
    Reply | Quote
    Mar 18th, 2014 at 13:04 | #62

    Hello Tushar,
    Is it possible to install Fusion apps products without using Oracle Identity Management.
    Please confirm.

  37. Anil
    Reply | Quote
    Mar 18th, 2014 at 13:03 | #63

    KFC :
    Hello guys I am trying to install Oracle fusion 11.1.7 on OEL6.5 on the IDM server for the preconfigure phase of database I get an error due to opatch failure during applying patch 14275605.
    How can i do to solve this?

    Hello Tushar,
    Is it possible to install Fusion apps products without using Oracle Identity Management.
    Please confirm.

  38. KFC
    Reply | Quote
    Feb 28th, 2014 at 10:24 | #64

    Hello guys I am trying to install Oracle fusion 11.1.7 on OEL6.5 on the IDM server for the preconfigure phase of database I get an error due to opatch failure during applying patch 14275605.

    How can i do to solve this?

  39. Harry
    Reply | Quote
    Feb 26th, 2014 at 10:11 | #65

    Hi Tushar,
    I have successfully completed the installation, but I’m having issue after the SSO login.

    when i go to URL –
    https://fahost:10634/homepage

    it redirects to –
    https://idmhost:7777/oam/server/obrareq.cgi?encquery

    and when i enter user and pwd and click sign then i get the error –
    “This webpage has redirect loop”.

    Please suggest how can i resolve this issue.

    Thanks,
    hari

    • Tushar Thakker
      Reply | Quote
      Oct 29th, 2014 at 06:47 | #66

      Dear Harry,

      I am sure you would have figured out the solution by now but I just noticed your comment so replying anyway.

      The redirect loop issue in Fusion Apps or any OAM integrated application is caused if you have time difference in both nodes. Just make sure to sync the time either using NTP or manually on both nodes (nearly same is fine) and the issue will be resolved.

      Thanks
      Tushar

  40. G
    Reply | Quote
    Feb 25th, 2014 at 16:24 | #67

    Hi Tushar.

    Great article and it’s very kind of you to share your learnings. Well done!

    It’s a shame there’s so many <edit:text removed> asking you to spoon feed them.

  41. Anand Ranganathan
    Reply | Quote
    Feb 22nd, 2014 at 22:43 | #68

    Reposting again. Appreciate your help.

    Hi Tushar,

    What is the lowest configuration that one can have to get a financial fusion installed in their system. Need to know…

    No of Servers:
    Hard Disk Space:
    Memory:

    If no. of servers can be just 1, then let me know what the worst can be for the memory.

    Appreciate your help in advance.

    Regards,

    Anand

    • tushar
      Reply | Quote
      Feb 23rd, 2014 at 05:37 | #69

      Dear Anand,

      On this same page where you commented, the minimum memory and space requirements are mentioned. Please note that from 11.1.7 onwards it is recommended to have at least 2 nodes.

      Regards
      Tushar

      • Anand Ranganathan
        Reply | Quote
        Feb 23rd, 2014 at 14:46 | #70

        Tushar,

        Thank you for the response. My issue is I am trying to do the installation in my personal home space. I have only one machine which has 12GB memory and sufficient hard disk space. I can expand this to 16GB but for now this is the max I can go. At present I am using Oracle VM with 8GB memory. I have completed the IDM Host part and it is successful. The space used was only 60GB in the hard disk. Will it still work if I put everything into one single machine?

        I understand performance would be bad but is that it or this will not even work?

        Appreciate your help.

        • tushar
          Reply | Quote
          Feb 24th, 2014 at 09:47 | #71

          Dear Anand,

          The configuration that you have is good for IDM node but please note that for Fusion Applications you need very high memory since it creates more than 30-40 managed servers and 5-6 admin servers based on products selection each needing more than 1 GB or RAM so you can understand that the installation will fail with out of memory issues. I would recommend you not to go ahead with this configuration since it can cause a lot of frustration to you during installation. If you had more RAM available then I could have advised you to go with 1 node as well using our previous guides.

          Regards
          Tushar

          • Anand Ranganathan
            Quote
            Feb 24th, 2014 at 14:24 | #72

            Tushar,

            Thank you for the response. What is the minimum RAM I need to Install IDM and Financials as a single node? Will 32GB be good enough?

            I didnt see your previous guides for installing 11.1.7 in a single node. Appreciate if you can point me to that as well.

            Regards,

            Anand

          • Anand Ranganathan
            Quote
            Feb 24th, 2014 at 22:34 | #73

            Hi Tushar,

            If I need to have a copy from you as a single node how much would it cost for me? This is for my personal use.

            Regards,

            Anand

          • Anand Ranganathan
            Quote
            Mar 2nd, 2014 at 13:27 | #74

            Thank you Tushar.

            I am trying to get a 64GB Machine with 3TB Hard Disk Space. Once I have it, then these should work I suppose. I will use your logic to have two nodes in a single machine there by I can resolve all issues.

            Please send me the details about the cost to my email id.

            Regards,

            Anand

          • tushar
            Quote
            Mar 3rd, 2014 at 17:53 | #75

            Having confirmed this many times earlier, I would like to say again the same for the last time that unless your machine has memory to host node1 and node2 both, do not expect to run Fusion Apps on the same or invest in it.

            Regards
            Tushar

  42. atul
    Reply | Quote
    Feb 21st, 2014 at 19:12 | #76

    Hi Tushar,

    Can you please help as i did installation 11.1.7 successfully.

    But when i tried to open https://fahost:10634/homePage and i am getting single sign on page from idmhost oam console and I entered user id FAAdmin and password .it si not going back to fahost url

    can you please help

    • tushar
      Reply | Quote
      Feb 23rd, 2014 at 05:38 | #77

      Dear Atul,

      Kindly confirm after loggin in with FAAdmin user after it redirects to OAM, which page you are landing at or whether you are getting any error.

      Regards
      Tushar

  43. bharath
    Reply | Quote
    Feb 18th, 2014 at 07:15 | #78

    Hi Tushar,

    I have completed successfully 11.1.7 installation, but i am not able to login with https:(URL’s not working) can you please help me in getting this issue resloved.

    https://fahost:10634/homepage — not working
    https://fahost:10630/supplierportal — not working

    I can open the http://fahost:10623/console (weblogic consoles) with out issues.

    Regards,
    Bharath

    • tushar
      Reply | Quote
      Feb 18th, 2014 at 07:18 | #79

      Dear Bharath,

      Kindly make sure you have started the web server on FA node if you had restarted the server.

      Regards
      Tushar

      • bharath
        Reply | Quote
        Feb 21st, 2014 at 07:33 | #80

        Hi Tushar,

        Its working fine after restart off the services.

        Regards,
        Bharath

  44. Anand Ranganathan
    Reply | Quote
    Feb 14th, 2014 at 22:42 | #81

    Hi Tushar,

    What is the lowest configuration that one can have to get a financial fusion installed in their system. Need to know…

    No of Servers:
    Hard Disk Space:
    Memory:

    If no. of servers can be just 1, then let me know what the worst can be for the memory.

    Appreciate your help in advance.

    Regards,

    Anand

  45. Rajesh P
    Reply | Quote
    Feb 11th, 2014 at 06:23 | #82

    Hi Tushar,

    The Application URL comes with installation is https.

    Please share if you have steps to unsecure(turn off SSL) Application URL.

    Thanks in Advance.

    Regards,
    Rajesh

    • tushar
      Reply | Quote
      Feb 11th, 2014 at 11:24 | #83

      Dear Rajesh,

      The port details are already there in web alias configuration file. For your reference there are both secure and insecure ports (http://fahost:10633 and https://fahost:10634) but FA by default will use secure port only and will redirect further pages back to secure port. You will get certificate warning only once if you are using demo machine.

      Regards
      Tushar

    • Suresh
      Reply | Quote
      Nov 22nd, 2016 at 02:55 | #85

      Rajesh – Have you found a way to disable SSL?

  46. Rajesh P
    Reply | Quote
    Jan 30th, 2014 at 15:23 | #86

    Hi Tushar,

    Thanks for the FA 11.1.7 Installation steps. I have installed FA ( all product offerings) in OEL 6.4 .

    Request you to also post steps to reduce JVM heap sizes for all the Admin and Managed servers atleast 30%.

    Thanks in Advance.

    Regards,
    Rajesh P

    • tushar
      Reply | Quote
      Feb 7th, 2014 at 09:36 | #87

      Dear Rajesh,

      Earlier I used to publish steps for JVM size reduction up to 50% but since 11.1.7 we have noticed that these soft-tuning really work for a while till you really start using the managed servers and Oracle has correctly sized the JVMs based on the requirements and even if you tune it (please read soft-tune), it will reach same or higher value once you start using it.

      Thanks
      Tushar

      • Rajesh P
        Reply | Quote
        Feb 10th, 2014 at 11:38 | #88

        Thanks Tushar.

  47. Vamsi
    Reply | Quote
    Jan 28th, 2014 at 10:14 | #89

    Hi Tushar,

    Can we have Complete Fusion Applications Installation training (11.1.7) & technical training in Hyderabad, Andhra Pradesh?

    • tushar
      Reply | Quote
      Jan 28th, 2014 at 10:22 | #90

      Dear Vamsi,

      Kindly send an email to contact[at]oratraining[dot]com with following details. We will reply you as soon as possible.

      1. Training location
      2. Organization details
      3. Approrximate Number of participants
      4. Email/phone of contact person
      5. Required course/training including customizations if any

      Thanks
      Tushar

  48. Prashant
    Reply | Quote
    Dec 30th, 2013 at 09:47 | #91

    Hi Tushar,

    How do you calculated the memory requirement? Is that base on Admin server, middleware and application managed servers required for each component? Will you please confirm if there is any relation between these?

  49. Garry
    Reply | Quote
    Dec 3rd, 2013 at 10:21 | #92

    Can you please post how to restart it? I follow your guide to install it, but don’t know how to restart

  50. M Siddiqui
    Reply | Quote
    Nov 13th, 2013 at 08:45 | #94

    Tushar,

    Can you please put step by step document on cloning and patching of fusion application?

    • tushar
      Reply | Quote
      Nov 13th, 2013 at 09:48 | #95

      Sure, will work on that soon.

  51. Ashok
    Reply | Quote
    Nov 4th, 2013 at 05:16 | #96

    For the hardware requirements, the RAM recommendations are very high.
    What type of hardware are you guys using?

    In the current market, unless we move into the server territory, we can only buy / build a workstation with max 64GB RAM. For servers having 128GB RAM seems to be easier, however it becomes prohibitively expensive for a end user.

    Is there any recommendations on the cost effective physical hardware?

    • tushar
      Reply | Quote
      Nov 4th, 2013 at 07:09 | #97

      Dear Ashok,

      You are right. But the concept that workstations are always cheaper than servers is not right. Most high-end workstations cost more than entry level servers. For example we have used the entry level servers ML150 or ML350 as well to install Fusion Apps successfully.

      Also when you see the maximum memory capacity for Workstations or Servers you might see upto 64 GB etc but if you look closely, they have mentioned 2GB or 4GB modules only. Most new workstations/servers do support 8GB ECC memory but they have not officially certified them. For learning purpose you can try and see if the particular machine supports 8GB and this will drastically increase max memory support.

      – Tushar

Leave a comment

XHTML: You can use these tags: <a href="" title=""> <abbr title=""> <acronym title=""> <b> <blockquote cite=""> <cite> <code> <del datetime=""> <em> <i> <q cite=""> <s> <strike> <strong>
RSS for comments on this post
